ABViewer 16 released

We are excited to announce the release of ABViewer 16! This version delivers significant enhancements across all key features — from 3D visualization and measurement to PDF to DWG/DXF conversion and G-code generation.

ABVIEWER 16 FREE TRIAL

Below you’ll find a detailed list of the new features and improvements introduced in ABViewer 16.

3D Improvements

• Improved import of STEP, SLDPRT, X_T, X_B, and ACIS formats.
• Improved export to STEP and ACIS formats.
• Added new view options for 3D model display:
  • Normal to – aligns the view perpendicular to the selected face.
  • Normal to an entity – aligns the view perpendicular to the selected face and fits it to the view area (hold Shift, select a face, and choose Normal to an entity).
  • Invert view – reverses the current view to look from the opposite side.

• Upgraded the Bounding box tool:

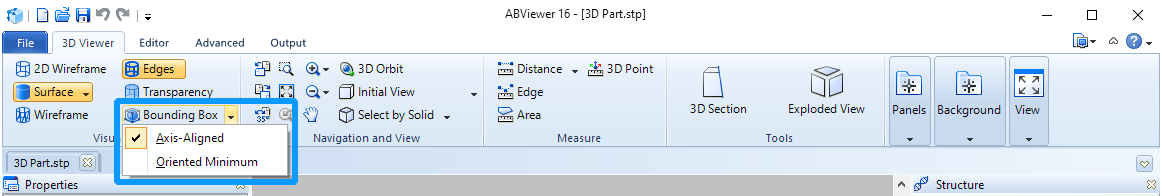

  • Added Oriented Minimum Bounding Box calculation in addition to Axis-Aligned Bounding Box.

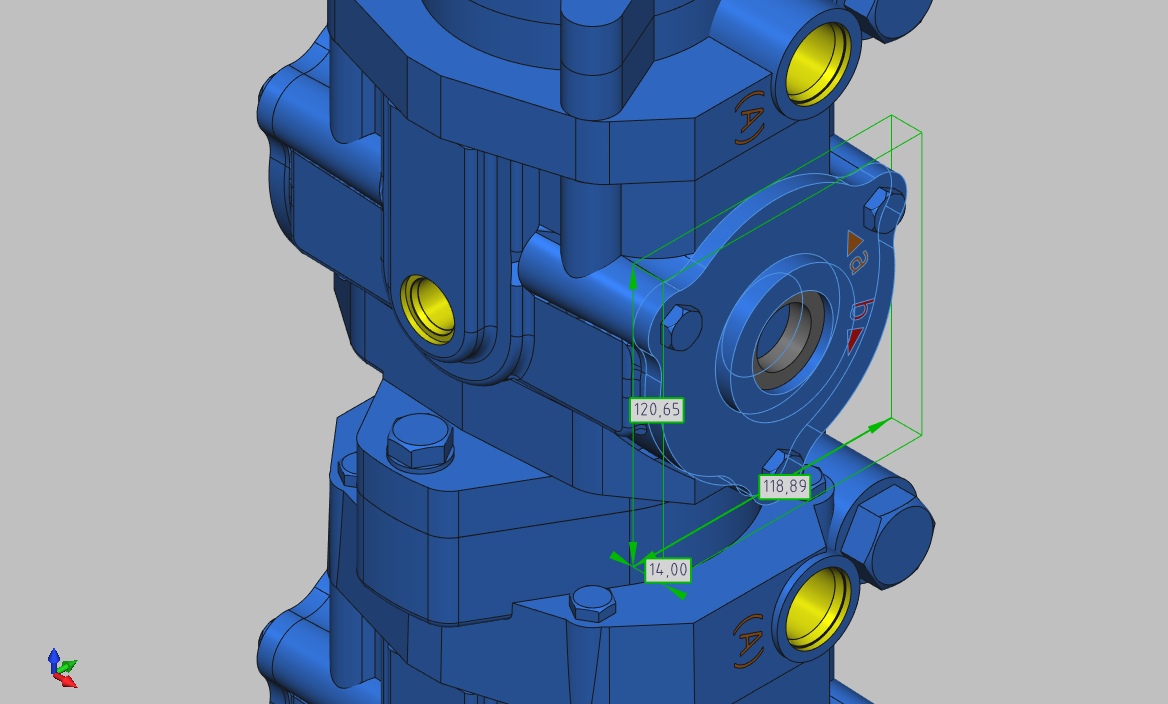

  • Now allows obtaining overall dimensions not only for the entire model but also for a selected element (click Bounding box, then select a solid or hold Shift and select an individual face).

• Added total measurement calculation for 3D models.

2D Improvements

• Added export to DWG and DXF 2010, 2013, 2018 formats.
• Improved export to DWG, DXF, SVG, and PDF formats.
• Improved import of DWG, DXF, DWF, HPGL and SVG formats.
• Upgraded 2D measuring tools:
  • Improved measuring experience.

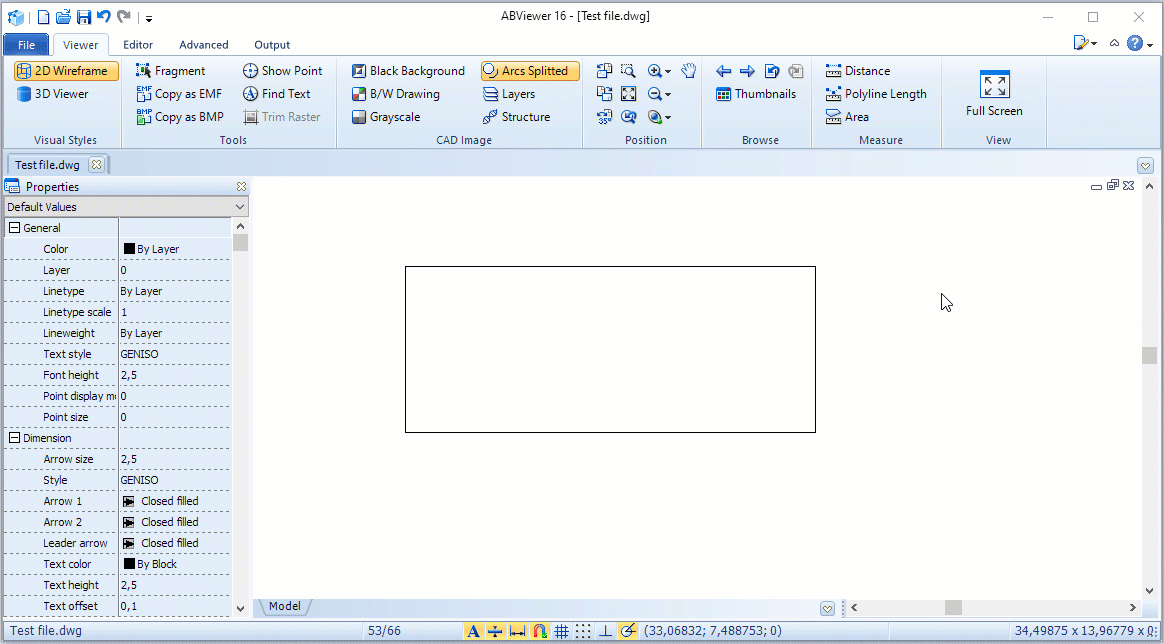

  • Added display of additional measurement information.

Improved PDF to DWG/DXF Conversion

• Improved overall conversion quality.
• Added a setting to apply transparency to fills (File -> Options -> Loading/Saving -> Apply transparency to fills).
• Added a setting to perform conversion via the Save as dialog (File -> Options -> Loading/Saving -> Convert PDF to editable drawing).
• Added an option to automatically open the file after PDF conversion for your convenience.

Improved G-code Generation

• Added the Create Pocket tool for creating pockets of any shape (select a contour, right-click, and choose Create pocket).

• Added a setting to round coordinates to the desired multiple (G-code settings -> General -> Precision factor).
• Added a setting for specifying incremental (G91) positioning (G-code settings -> Positioning -> Positioning system).

Improved Editor Mode

• Improved overall editing experience.

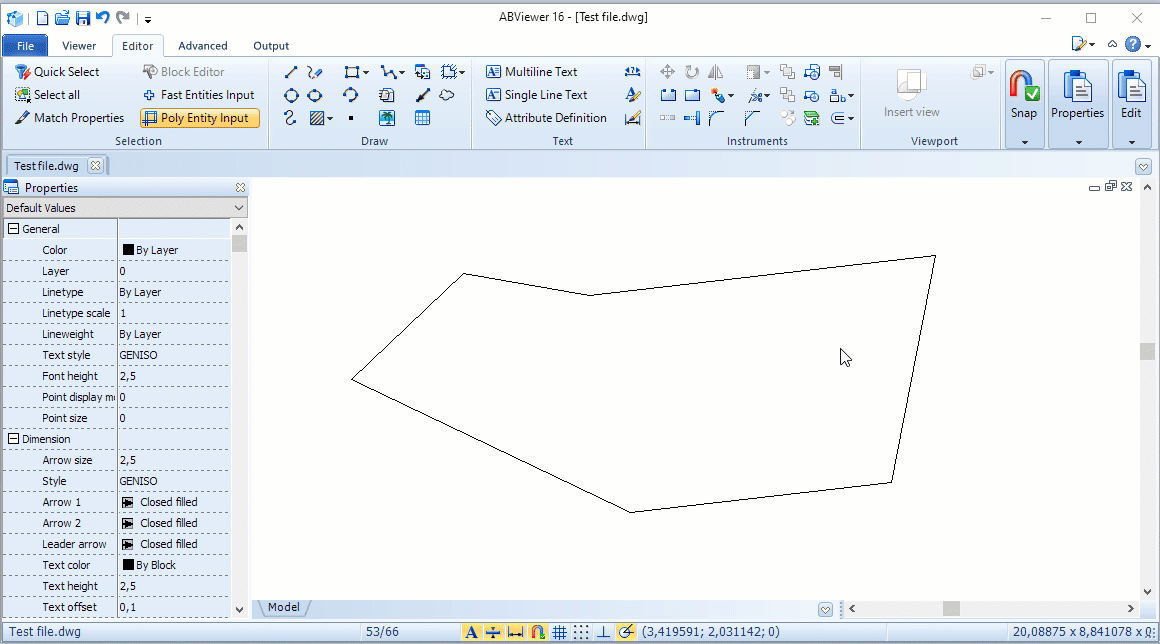

• Added the Offset tool for creating concentric circles and boundaries at a specified distance of the selected object.

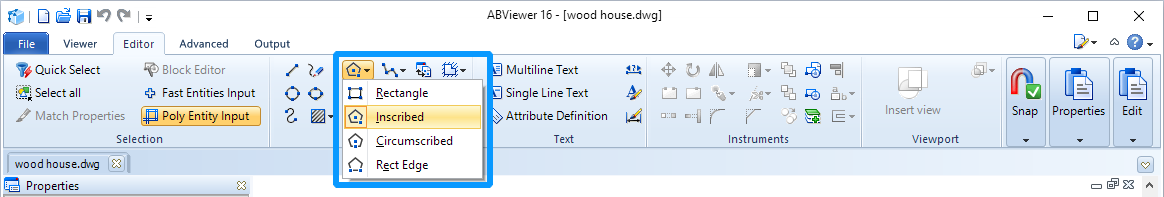

• Added the Polygon tool for creating various types of polygons: Inscribed, Circumscribed, and Rect Edge.

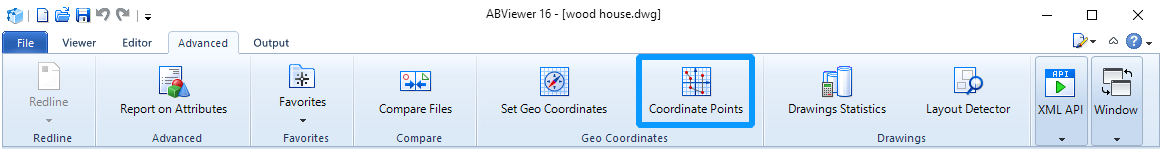

• Added the Coordinate Points tool that allows placing points at specified coordinates with automatic line connection, and supports import/export of coordinate points in TXT and CSV formats.

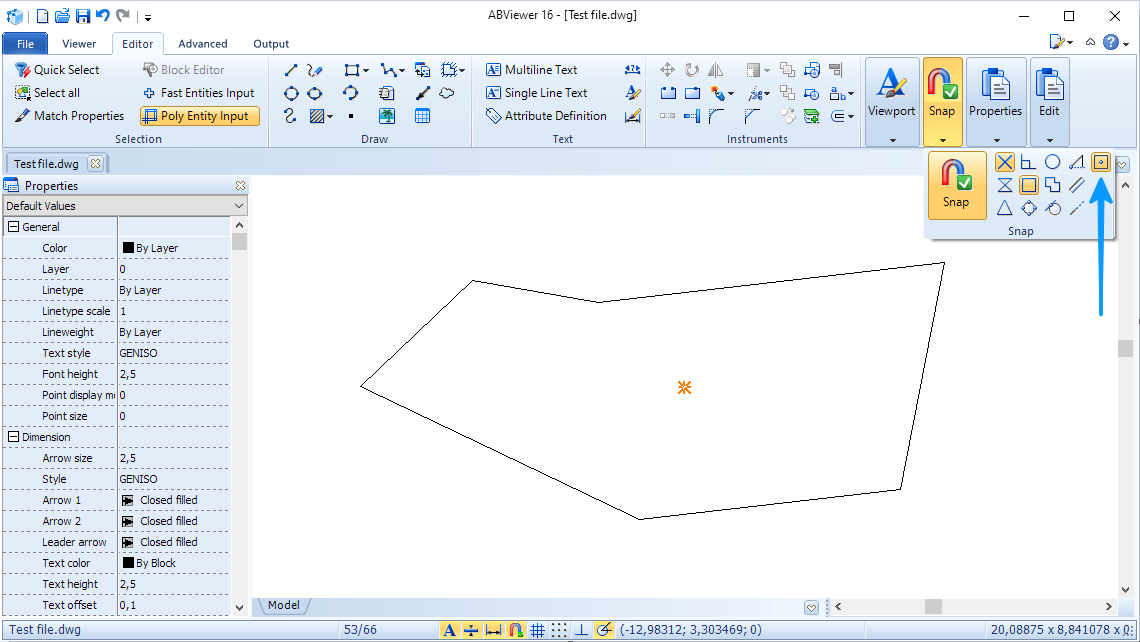

• Added Geometric center snap and the option to display its symbol for closed polylines.

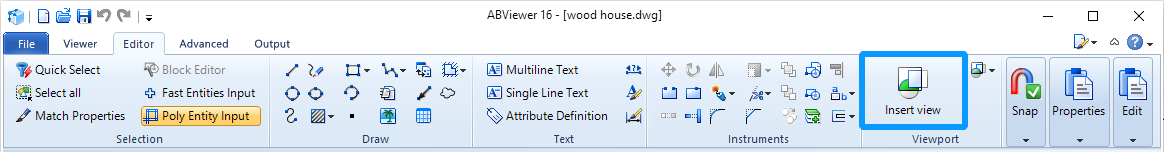

• Added a new method for inserting viewports: click Insert Viewport on the Editor tab, select an area of the drawing, and place it on the layout after setting the desired scale from the context menu.

• Improved viewport navigation.
• Added an option to configure a drawing grid (File -> Options -> Grid).

Other Improvements

• Added a setting to adjust display border width (File -> Options -> Visualization -> Border around CAD image).
• Improved stability when running under Wine.
• Bug fixes and performance improvements.

Download the latest version of ABViewer and try it out right now. It is free for 30 days.

ABVIEWER 16 FREE TRIAL

If you have an active subscription, you will receive ABViewer 16 free of charge. If you own a lifetime license, you can purchase an upgrade at a special price at https://cadsofttools.com/products/abviewer/lifetime-license-upgrade/. Contact us at info@cadsofttools.com, we will be happy to answer your questions and assist with the upgrade.
